40 Pin Lcd Screen 5 Inch 800*480 Resolution Small LCD Touch Screen
1. Specification
| ITEM | STANDARD VALUES | UNITS |
| LCD type | 5” TFT with RTP | -- |
| Dot arrangement | 800×3(RGB)×480 | dots |
| Driver IC | *** | -- |
| Module size | 120.7(W)×76.3(H)×4.2(T) | mm |
| Active area | 108(W)×64.8(H) | mm |
| Luminance | 250 | cd/m2 |
2. Description
ChengHao Display model CH500WV05A-T is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a touch panel a driving IC, a back-light and FPC.
This TFT LCD has a 5.0 (Horizontal screen) inch diagonally measured active display area with 800*3(RGB)*480 resolution.
The driver used for this project can display 16M colors by R.G.B. signal input. The driver is mounted on the glass and the interconnection via FPC including components to drive the display module. Support 24-bit Parallel RGB Interface.
In addition, FPC can also be customized according to customer requirements, such as modifying back-light and FPC structure, interface definition, etc. RoHS Compliance & Halogen Free.
Of course, if this tft lcd matrix 5 inches does not meet your project requirements at all, we can also design a new display solution for you according to your wishes, and you can obtain relevant information by consulting online customer service.
3. Drawings
Notes:
(1) Display Type : 5.0"TFT
(2) Viewing Direction : All Viewing Direction
(3) Lcd Drive IC : ****
(4) Operating Temp : -20~70 ℃
(5) Storage Temp : -30~80 ℃
(6) Unmarker Tolerance: ±0.20
(7) Protection : ROHS
4. Quick Detail

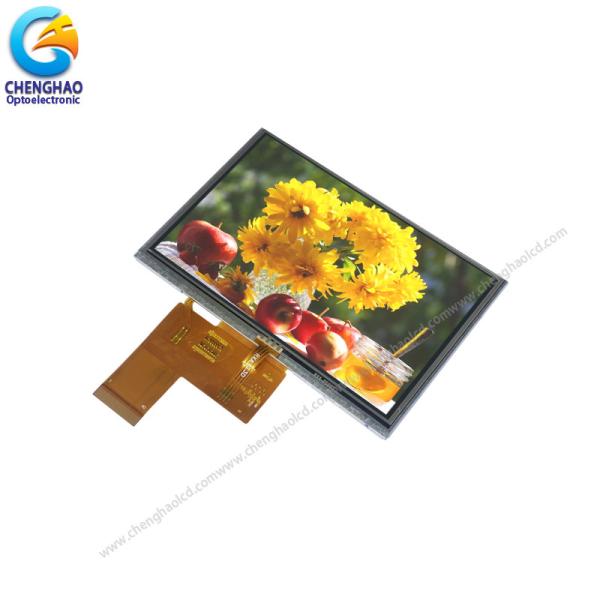

Product Name: 40 Pin Lcd Screen 5 Inch 800*480 Resolution Small LCD Touch Screen
Model No:CH500WV05A-T
With or Without TP: Yes
TP Type: RTP
LCD type: 5.0"TFT+TP
Dot arrangement: 800×3(RGB)×480
Color filter array: RGB vertical stripe
Display mode: IPS / Transmissive / Normally Black
Viewing Direction: 80/80/80/80
TFT Driver IC:***
Color: 16M
Contrast: 800:1
Module size: 120.7(W)×76.3(H)×4.2(T) mm
TFT Active area: 108(W)×64.8(H) mm
Dot pitch: 0.135(W)×0.135(H) mm
TFT Interface: 24-bit Parallel RGB Interface
FPC Pin Number: 40
Operating temperature: -20 ~ +60 ℃
Storage temperature: -30 ~ +70 ℃
Back Light: White LED
Weight: *** g
6. Products Quality Assurance
(1)High-quality raw material supplier :
after-sales guarantee and long-term stable supplier, LCD panel and Driver IC made of A-regulated raw materials.
(2)Other materials:
such as polarizers, backlight film materials, etc. We also use brand new A-regulated raw materials
(3)Strict quality control:
Through rate up to 98.5%,Customer online defect rate as low as 0.3%.
Inspection is done in FOG==>LCM==>LCM+RTP/CTP==> production online inspection ==>Q.C inspection==>aging test 4 hours with load in 60 ℃ special room (as option)==>OQC.
A product must pass 5 tests before shipment: incoming inspection, 100% online inspection, QC on-site inspection, aging test and OQC inspection, etc.
